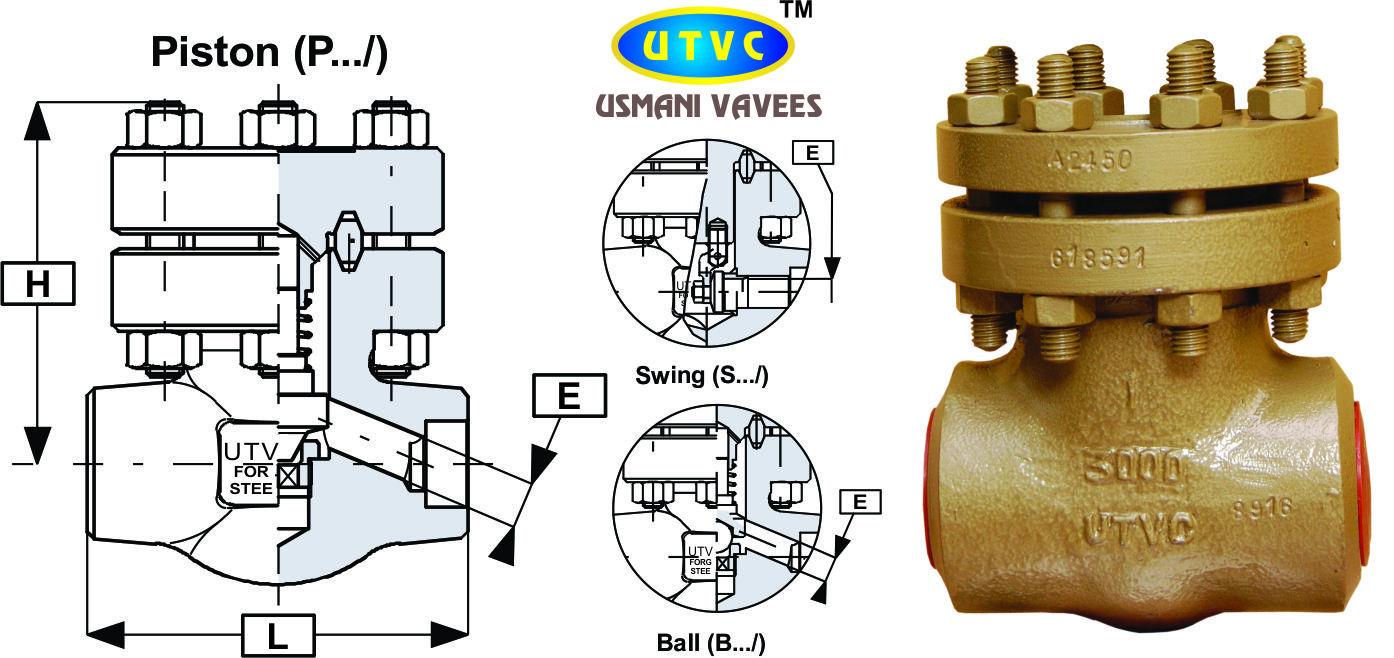

| Design | API / British standard Straight Body and Bolted Cover |
| Material | Forged carbon Steel ,FCS ASTM A 105, ASTM 182 F11,F22. F9. F6, CF8,304 CF8 M 316/316L etc. |
| Disc & Seat | FCS SS304.304L,SS316,316L, |
| Trims | F6 SS 304,304L, 316,316L, etc |
| Action | Manual, Hand wheel operated |
| Rating | 1500# |
| Ends conn. | Screwed ends, Socket weld , Butt weld / B16.25,B16.11 |
| Mfg. | BS 5352, API 602 |
| Testing. | API 598 / BS 6755 |
| Application | Oil & Gas, Air, Petrochemical Industries, Power Plant, Water, Chemicals Plant, Pharma, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries |
