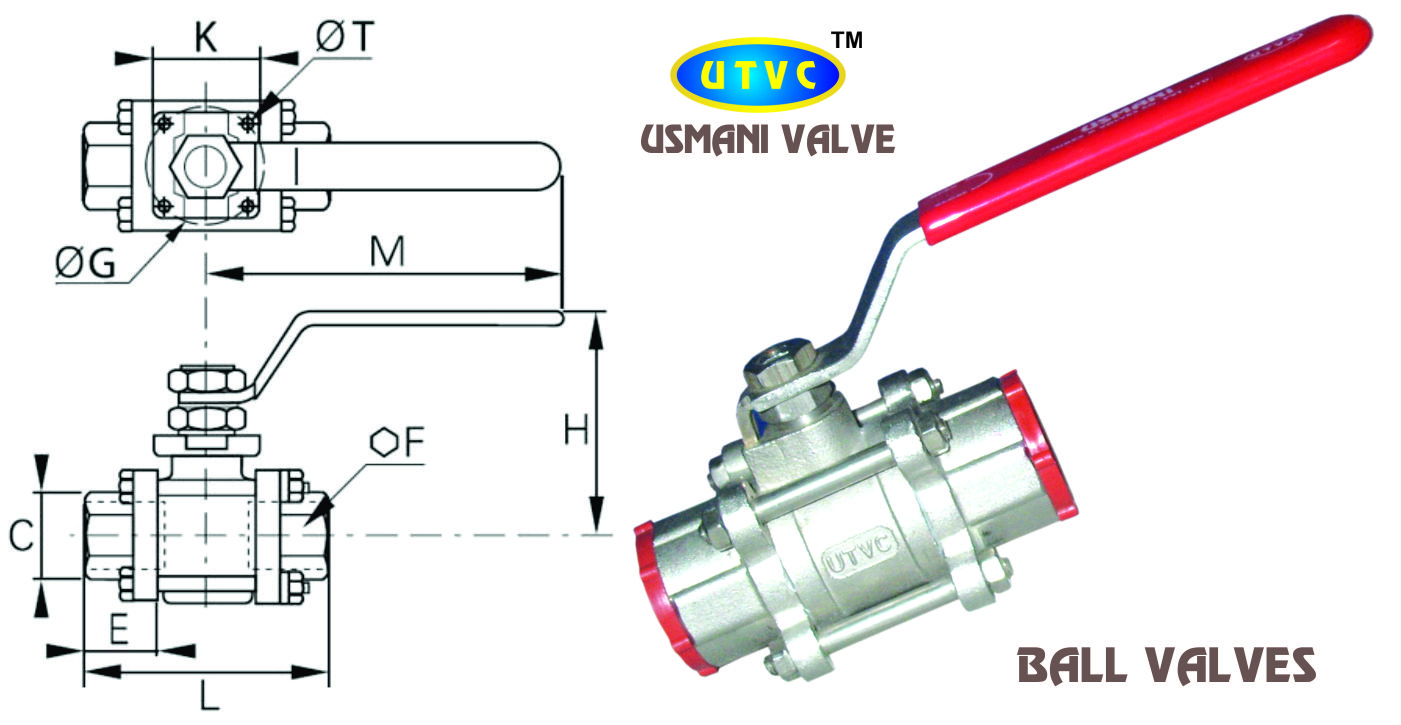

UTVC Make Ball Valve Three Piece Design Floating type (investment casting )
| Design | Three Piece Ball valve blow out proof stem construction |
| Material | CS ASTM A 216 Gr. WCB, CF8, CF8M Investment Casting etc. |
| Ball & trims | SS 304, 304L,316,316L |
| Seat | PTFE, GFT, CFT |
| Action | Manual, Lever |
| Rating | Class 800#,300#,600# |
| Ends conn. | Screwed ends, Socket weld, but weld |
| Port | Full & Reduce |
| Mfg. | BS 5351/B16.34 /API 6D,API 609/MSS SP 72 |
| Testing | API 598 / BS 6755 |
| Application | Air, Gas, Water, Chemicals, Pharma, Oil, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries |
